Some usefull Tk widgets and Tcl codes


  An analog clock in Tk

An analog clock in Tk really pretty and thin, from Kevin Kenny

Url    Download



  A simple voltmeter

I`m looking more for an analog style meter. Kinda like those old volt meter. Well, if you just want to display, why not write one into a canvas? It`s pretty easy, and fun too. Try this

Url    Download



  Dial widget

an analog dial of $diameter pixels, background color $bg, foreground color $fg, and middleground color $mg.

Url    Download



  Paning widgets

A pane is understood here as a frame holding two widgets and a thin borderline with a square button. By grabbing the button, the borderline can be moved in two directions, leading to a relative resize of the two embedded widgets.

Url    Download



  A Pane vertical

A Pane vertical.
Thank`s to George Peter Staplin.
Download



  LCD display

LCD. Some code the show lcd display with a canvas. This code come from Maze Explorer.

Url    Download

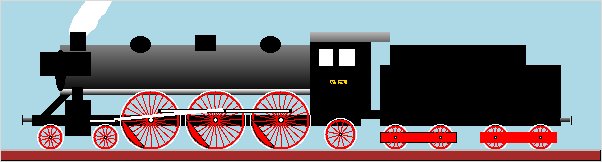

  Animated steam locomotive

An animated steam locomotive on a canvas from "Richard.Suchenwirth"

Url    Download

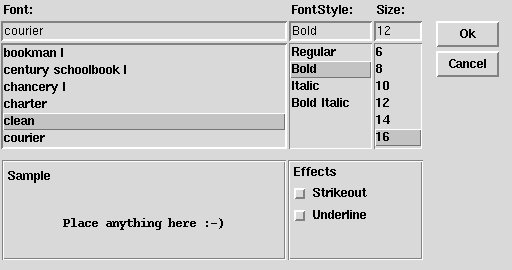

  A font chooser dialog

A font chooser dialog from Petasis George:
Ok, the code is not perfect, but it works :-) You can use it as:
global GUI_Text
## You can use the GUI_Text array to localise all used messages.
## Sorry for not using msgcat, but I extract it directly from a complete
## app :-)
array set GUI_Text {Font: Font: FontStyle: FontStyle: Size: Size:
  Ok Ok Cancel Cancel Effects Effects Strikeout Strikeout
  Underline Underline Sample Sample TestString... {Place anything here :-)}}

1) If you want to change the font of a text widget:
    "::FontDialog::FontSelect text_widget dialog_window"
2) If you want to change a named font (one created with the font command):
    "::FontDialog::FontDialog named_font dialog_window"
Download



  A font chooser dialog

Creates a font dialog to select a font ( Donal K. Fellow ) the author have said : It isn`t perfect by a long shot, but.

Url    Download



  PieChart

This source shows how to make a piechart in a canvas with tcl/tk from Paul Welton (paul.welton_at_sympatico.ca )
Download

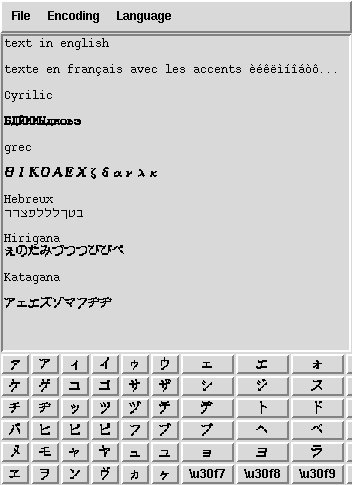

  An unicode editor.

An editor for unicode , encoding in
  • ascii
  • cp1252
  • euc-jp
  • iso2022-jp
  • iso8859-1
  • iso8859-2
  • iso8859-3
  • iso8859-4
  • iso8859-5
  • iso8859-6
  • iso8859-7
  • iso8859-8
  • jis0208
  • koi8-r
  • shiftjis
  • utf-8
  • unicode

For the language
  • \"Euro Latin 1\"
  • Arabic
  • Cyrillic
  • Greek
  • Hebrew
  • Hiragana
  • Katakana
  • Thai
Download

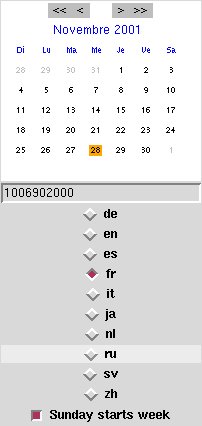

  A calendar widget

A calendar widget:
- Here`s a popup toplevel that displays a given month and allows to pick a date (or cancel):

Url    Download
